Cone Beam Ct Imaging

When your oral surgeon needs to see exactly what is happening beneath the surface — the precise position of a nerve relative to an impacted wisdom tooth, the three-dimensional bone volume available for an implant, the full extent of a jaw fracture or pathological lesion — conventional two-dimensional X-rays cannot provide the detail needed for safe, accurate surgical planning. Cone Beam CT (CBCT) imaging can.

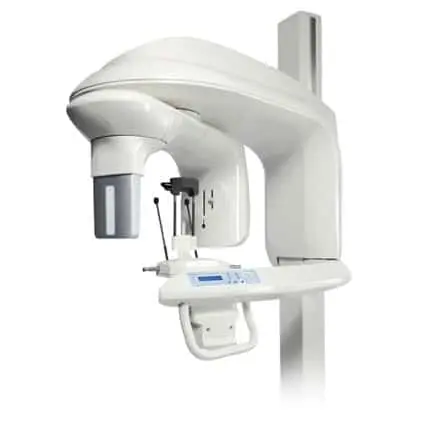

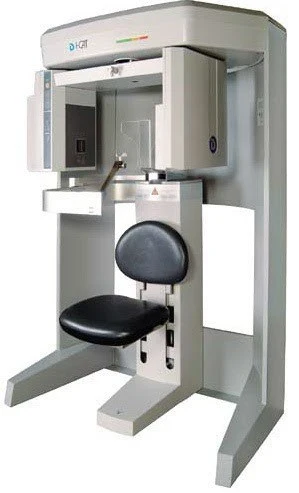

At Goodove Oral Surgery, our in-house CBCT system gives our surgeons the ability to capture high-resolution 3D images of your teeth, jaws, sinuses, and surrounding structures in a single scan — providing a level of diagnostic clarity that directly translates to more predictable outcomes and fewer surgical surprises. As part of our comprehensive oral surgery procedures, advanced imaging is incorporated into the planning process for virtually every major surgical case. Learn more about CBCT technology from the Radiological Society of North America.

What Is Cone Beam CT (CBCT) Imaging?

Cone Beam CT imaging is a specialized form of dental X-ray that uses a cone-shaped beam of radiation that rotates around the patient’s head, capturing hundreds of images from different angles in a single pass. Sophisticated software reconstructs these images into a precise, three-dimensional digital model of your anatomical structures — including teeth, bone, nerves, sinuses, and soft tissue.

Unlike conventional medical CT scanners, CBCT systems are designed specifically for the maxillofacial region. They are smaller, faster, less expensive to operate, and — critically — deliver significantly less radiation than hospital-grade CT scanners while producing images that are more than adequate for oral and maxillofacial surgical planning. The entire scan process takes 10 to 40 seconds. The imaging is non-invasive and requires no injections, dyes, or preparation of any kind.

How CBCT Differs From Traditional Dental X-Rays

Traditional periapical and panoramic X-rays produce flat, two-dimensional images that can miss critical three-dimensional relationships — particularly bone depth, angulation of impacted teeth, proximity of roots to nerves, and the true extent of pathological lesions. What looks like a manageable finding on a 2D panorex can turn out to be significantly more complex when viewed in three dimensions.

CBCT eliminates this ambiguity. It provides cross-sectional views at any angle, precise bone measurements to the millimeter, and the ability to digitally trace nerve pathways, measure sinus volumes, and identify hidden anatomy that would otherwise only become apparent during surgery. For patients who have already been evaluated with conventional X-rays and have been referred for surgery, CBCT gives us the additional detail needed to plan confidently and avoid intraoperative complications.

Clinical Applications of CBCT at Goodove Oral Surgery

Our team uses CBCT imaging across a wide range of surgical cases. The specific value it provides differs by procedure, but in every case, the goal is the same: more information before surgery means better decisions during surgery and better outcomes for patients.

Dental Implant Planning — CBCT provides the exact bone height, width, and density at the proposed implant site, identifies the location of the inferior alveolar nerve and mental foramen, and allows for virtual implant placement and angulation planning before any surgery occurs. This precision is the foundation of predictable implant outcomes.

Wisdom Tooth Extraction — Many impacted lower wisdom teeth are in close proximity to the inferior alveolar nerve. CBCT allows our surgeons to precisely map the relationship between tooth roots and the nerve canal, informing surgical approach, assessing the level of difficulty, and allowing patients to make fully informed decisions about their options.

Bone Grafting Assessment — Before any augmentation procedure, CBCT gives us three-dimensional bone volume measurements, identifies anatomical boundaries such as sinus floors and nerve canals, and guides the choice of graft technique, graft volume, and membrane coverage needed for successful regeneration.

Oral Pathology Evaluation — For cysts, tumors, and suspicious lesions, CBCT reveals the extent of bone involvement, the relationship to adjacent teeth and structures, and the three-dimensional boundaries of the pathology. This detail is critical for planning the correct scope of excision and predicting the need for reconstruction.

Facial Trauma Assessment — For fracture evaluation, CBCT provides rapid, high-detail imaging of fracture patterns, displacement of bone segments, and involvement of the TMJ, orbital floor, sinuses, and dental structures — allowing for accurate pre-operative planning of the surgical repair.

Is CBCT Imaging Safe?

Yes. CBCT imaging uses significantly less radiation than traditional medical CT scanners and is well within the range considered safe for routine diagnostic use. A typical CBCT scan exposes patients to radiation doses similar to a conventional dental panoramic X-ray series. The cone-shaped beam is focused on the area of interest, minimizing exposure to surrounding tissues.

Our equipment uses preset fields of view that concentrate the imaging specifically on the anatomical region being evaluated — reducing the total scan area and therefore the overall radiation dose. For most patients, the diagnostic benefit of CBCT imaging far outweighs any associated risk, particularly when compared to the risks of proceeding with surgery without complete anatomical information.

Insurance Coverage for CBCT Imaging in Virginia Beach

CBCT imaging is the current standard of care for complex oral surgery planning, and insurance coverage has expanded accordingly. Many dental PPO plans partially or fully cover CBCT scans when ordered in conjunction with a covered surgical procedure. Coverage varies by plan and may require pre-authorization. Our team will verify your imaging benefits before your scan and communicate any out-of-pocket costs clearly so there are no surprises. For questions about your benefits, visit our insurance and financial information page.

Schedule Your Consultation at Goodove Oral Surgery in Virginia Beach

When precision matters most, the imaging technology behind your surgical plan matters. At Goodove Oral Surgery, our in-house CBCT system gives our surgeons the 3D detail they need to plan accurately, operate safely, and deliver outcomes you can trust. As your hometown, independently owned oral surgery practice, we combine advanced technology with the kind of personal attention that only a locally focused practice can provide. Please contact our office to schedule your consultation and experience the difference that comprehensive imaging makes in your care.
